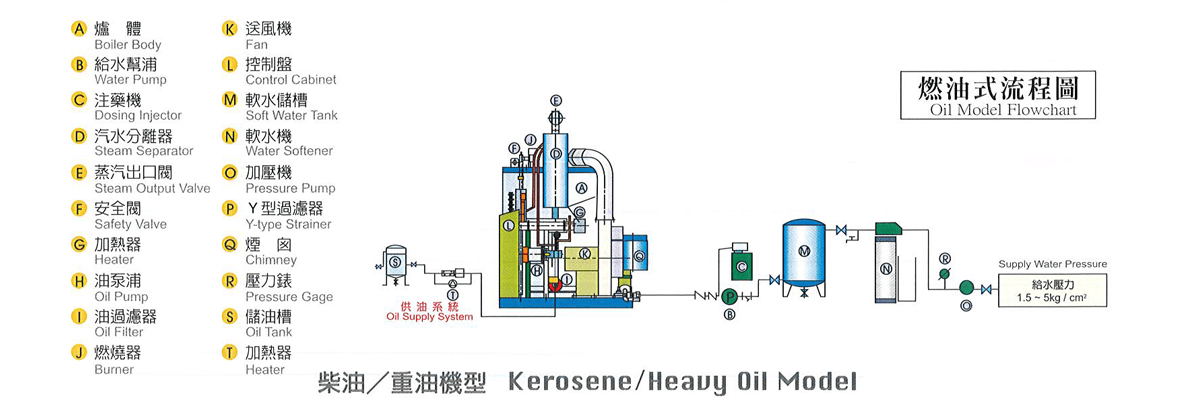

柴油/重油機型
Kerosene/Heavy oil Model
規格 Specitication
| 機型 (Model) | OT-150K | OT-250K | OT-350K | OT-500KH | OT-750KH | OT-1000KH | OT-1500KH | OT-2000KH | |||
| 構造型式 (structure) | 貫流式 Once-through | ||||||||||
| 性能 (performance) | 最高壓力 (Max. pressure) | Kg/cm² | 10 | ||||||||
| 鍋爐效率 (Boiler efficiency) | % | 85%以上 More than 85% | |||||||||
| 換算蒸發量 (equivalent evaporation) | Kg/hr | 150 | 250 | 350 | 500 | 750 | 1000 | 1500 | 2000 | ||
| 實際蒸發量 (real evaporation) | Kg/hr | 125 | 209 | 292 | 417 | 626 | 834 | 1252 | 1669 | ||
| 發熱量 (heat output) | Kcal/hr | 80850 | 134750 | 188650 | 269500 | 404250 | 539000 | 808500 | 1078000 | ||
| 傳熱面積 (heating surface) | m² | 3.4 | 3.4 | 4.8 | 7.5 | 9.9 | 9.9 | 9.9 | 9.9 | ||
| 保有水量 (water in tube) | L | 48 | 48 | 100 | 130 | 160 | 160 | 157 | 157 | ||
| 油料消費量 (oil consumption) | Kerosene | Kg/hr | 9.1 | 15.2 | 21.3 | 30.4 | 45.6 | 60.8 | 91.2 | 121.5 | |
| Heavy oil | Kg/hr | na | na | na | 10.4 | 11.95 | 12.7 | 18.8 | 20.7 | ||
| 電力設備 (power equipment) | Kerosene | KW | 1.2 | 1.2 | 1.2 | 1.7 | 3.6 | 4.3 | 8.4 | 10.7 | |
| Heavy oil | KW | na | na | na | 10.4 | 11.95 | 12.7 | 18.8 | 20.7 | ||
| 接管口徑 (pipe size) | 燃料入口管 (fuel inlet) | mm | 20 | 25 | 25 | 40 | 50 | 50 | 50 | 50 | |
| 給水入口管 (water inlet) | mm | 20 | 20 | 20 | 20 | 25 | 25 | 25 | 25 | ||
| 蒸氣出口管 (steam outlet) | mm | 25 | 25 | 25 | 32 | 40 | 50 | 50 | 65 | ||
| 罐體排放管 (drain outlet) | mm | 25 | 25 | 25 | 25 | 40 | 40 | 40 | 40 | ||
| 自動排放裝置 (automatic drain device) | mm | na | na | na | na | na | 10 | 10 | 10 | ||
| 安全閥管徑 (safety valve diameter) | mm | 25 | 25 | 25 | 40 | 40 | 50 | 全量式 32 | 全量式 32 x 2 | ||
| 煙囪管徑 (chimney diamater) | mm | 150 | 150 | 200 | 250 | 300 | 300 | 300 | 300 | ||
| 外觀尺寸 (visual dimension) | 深 (depth) | mm | 1250 | 1250 | 1250 | 1575(K) 1633(H) | 1834 | 1834 | 1631 | 1723 | |
| 寬 (width) | mm | 872 | 872 | 872 | 946 | 1190 | 1190 | 1788 | 1845 | ||
| 高 (height) | mm | 1844 | 1844 | 2024 | 2115 | 2055 | 2055 | 2120 | 2330 | ||
柴油發熱量：102000 Kcazl/Kg.
重油發熱量：9700 Kcazl/Kg.
如因產品改良，本公司保有扁更或增刪規格之權利
Kerosene heat output is 102000 Kcazl/Kg.
Heavy oil heat output is 9700 Kcazl/Kg.
On behalf of product improvment, we have the right to change(add or delete) all the specifications.
