貫流式全自動蒸氣、熱煤鍋爐
Automatic Steam & Oil Boiler
貫流式全自動蒸氣、熱煤鍋爐
本機種適合：三溫暖、食品加工、化學加工、小型染廠、汽車旅館、飯店、工業洗衣廠及金屬、油脂、電鍍工業等
- 效率特高，具經濟性。
- 操作簡單，保養容易。
- 良質蒸氣，起磅快，5分鐘內達到壓力。
- 多重安全裝置，絕對安全。
- 免執照、免檢查。
- 完全燃燒，絕無黑煙。
Automatic Steam & Oil Boiler
This boiler is designed for sanna, fibre, chemical, food, metallic, mining, oil fats industry etc.
- High efficiency, most economic
- Easy to operate and maintain.
- Superior steam. In just 5 mins the pound will be raised.
- Muilti-Safe equipment. Absolute safe.
- License free. Examination free.
- Complete burning and no smoke produce.
規格 Specitication

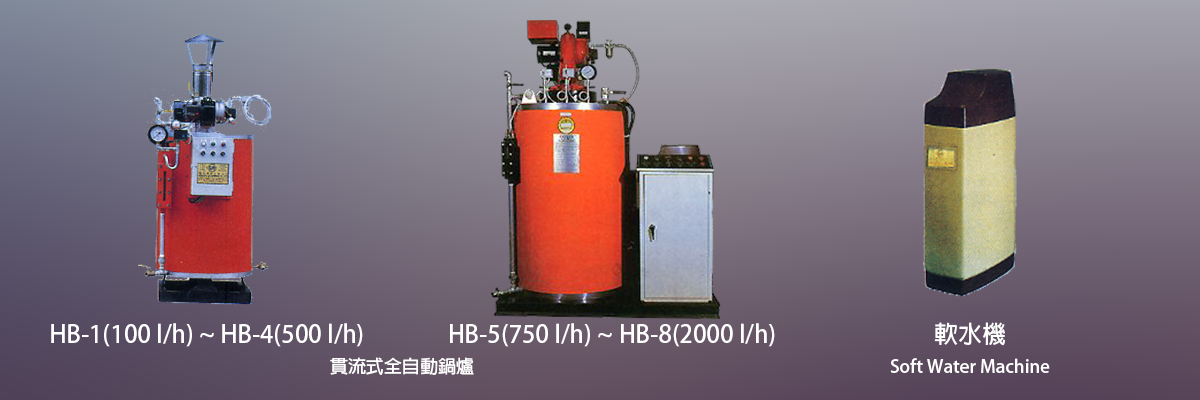

貫流式全自動鍋爐 Automatic Steam Boiler
| 型式 (Model) | 蒸氣量 (Steam Comsun) | 發熱量 (Fever Capacity) | 最高使用壓力 (Maximum Pressure) | 燃料消費量 (Fuel Consume Capacity) | 燃料 (Fuel Type) | 傳熱面積 (Heat Conductive Area) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| HB-1 | 100 l / h | 53880 kcal/h | 6 kg/cm² | 7.4 l / h | 柴油 Diesel | 2.6 m² | ||||
| HB-2 | 200 l / h | 107760 kcal/h | 10 kg/cm² | 14.7 l / h | 柴油 Diesel | 4.0 m² | ||||
| HB-3 | 300 l / h | 161640 kcal/h | 10 kg/cm² | 22.1 l / h | 柴油 Diesel | 6.0 m² | ||||
| HB-4 | 500 l / h | 269400 kcal/h | 10 kg/cm² | 37.7 | 33.9 | 31.5 | 柴油 Diesel | 鍋爐油 Boiler Oil | 燃料油 Fuel Oil | 7.86 m² |
| HB-5 | 750 l / h | 404100 kcal/h | 10 kg/cm² | 56.6 | 50.9 | 47.3 | 9.94 m² | |||
| HB-6 | 1000 l / h | 540850 kcal/h | 10 kg/cm² | 71 l / h | 燃料油 Fuel Oil | 9.6 m² | ||||
| HB-7 | 1500 l / h | 809000 kcal/h | 10 kg/cm² | 98 l / h | 燃料油 Fuel Oil | 9.9 m² | ||||
| HB-8 | 2000 l / h | 1077150 kcal/h | 10 kg/cm² | 125 l / h | 燃料油 Fuel Oil | 9.95 m² | ||||
